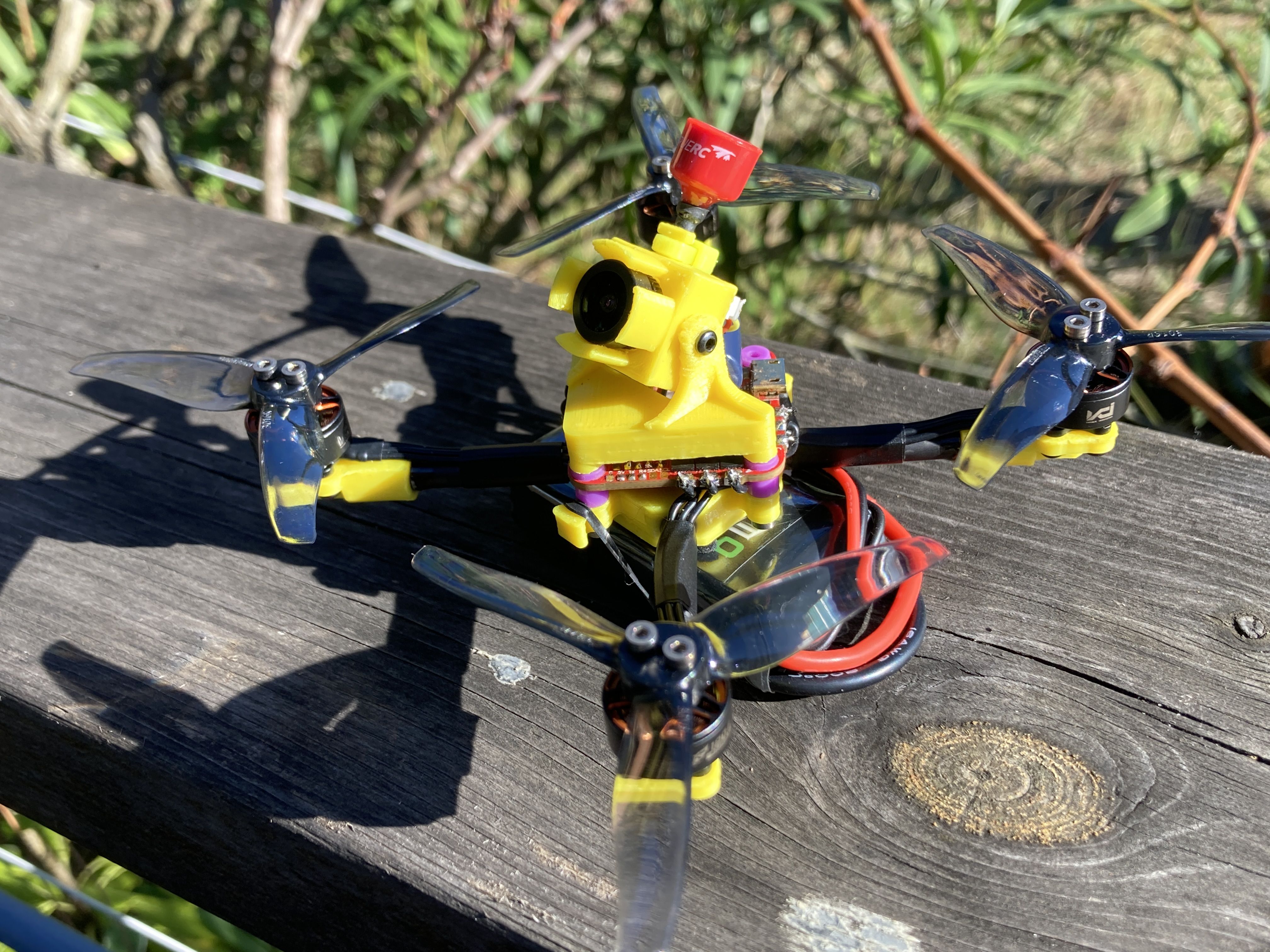

3" toothpick made with 5mm (3mm internal) carbon fiber tube and 3D printed ABS parts.
https://www.printables.com/model/1462382-cyberfrelon-3-toothpick
Parts used in this build:
25.5x25.5mm HACKRC AIO F722 35A ESC
TBS Unify Pro32 Nano VTX
BetaFPV ELRS nano receiver (smd antenna)
Runcam Racer Nano 3 MCK edition
TrueRC Ufl antenna
VCI SPark 1204 4500kv motors
Gemfan 3016*3 props
Ovonic 650mAh 3S lipo
Running Quicksilver, the quad flies pretty well :)
Frame |
CyberFrelon 3" toothpick
Printables.com
|
See Site |
Flight Controller |
HAKRC AIO Board - Brushless F722 FC + 40A 2-6S BLHeli_S ESC w/ External USB
(3 builds)
Getfpv.com
|
See Site |
Motors |
4 x Moteur VCI Spark 1204 - 4500KV (2pcs) - VCI
Drone-fpv-racer.com
|
See Site |
Propellers |
GEMFAN Hurricane 3016 - 1.5mm shaft (2CW+2CCW)
(2 builds)
Drone-fpv-racer.com
|
See Site |
FPV Camera |
RunCam Racer Nano 3 1.8mm Camera - MCK FPV Edition
Getfpv.com
|
See Site |
Batteries |
4×Ovonic 11.1V 650mah 3S 80C Lipo Batterie XT30 Prise pour Petit FPV
Ampow.com
|
