1-2S brushed classic build with different motors weight 48g-53g depends on motor!
Frame: 102mm Own developmemt and cut by ccarbon.hu

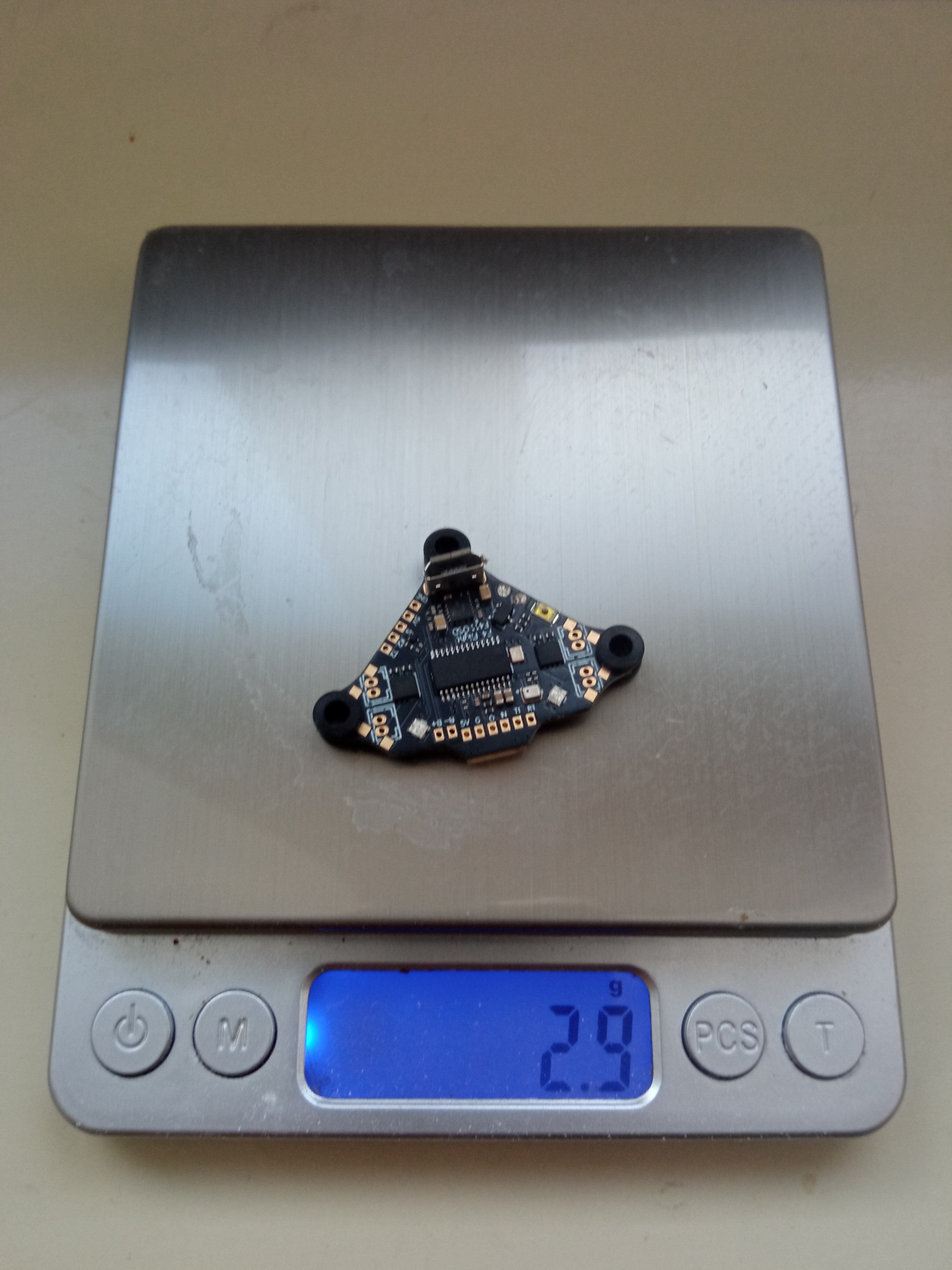

FC: F4DC F4 Flight Control Brushing Motor, Barometer
Receiver: BetaFPV ELRS Lite Receiver
VTX: Eachine VTX02 200mw
Camera: BETAFPV C03
Propeller: 65mm
Motor:
1S 8520 RacerStar (5,8g) Lifetime Rating?
1S 8523 (6,7g) Lifetime Rating 20+ hours!
2S 8520 (5,4g) short Lifetime Rating minimum 1hour maximum 4hours
2S 8523 (6,2g) better Lifetime Rating more than 5hours!
1S 8520 -> 44gramm / 8523 -> 50gramm
2S 8520 -> 47gramm / 8523 -> 51gramm
Battery:
HV 1S 850mah (17g)
GNB HV 2S 380mah (21)
Summ weight:
1S around 59-65gramm
2S around 66-76gramm
Flytime 4-6 minutes!
