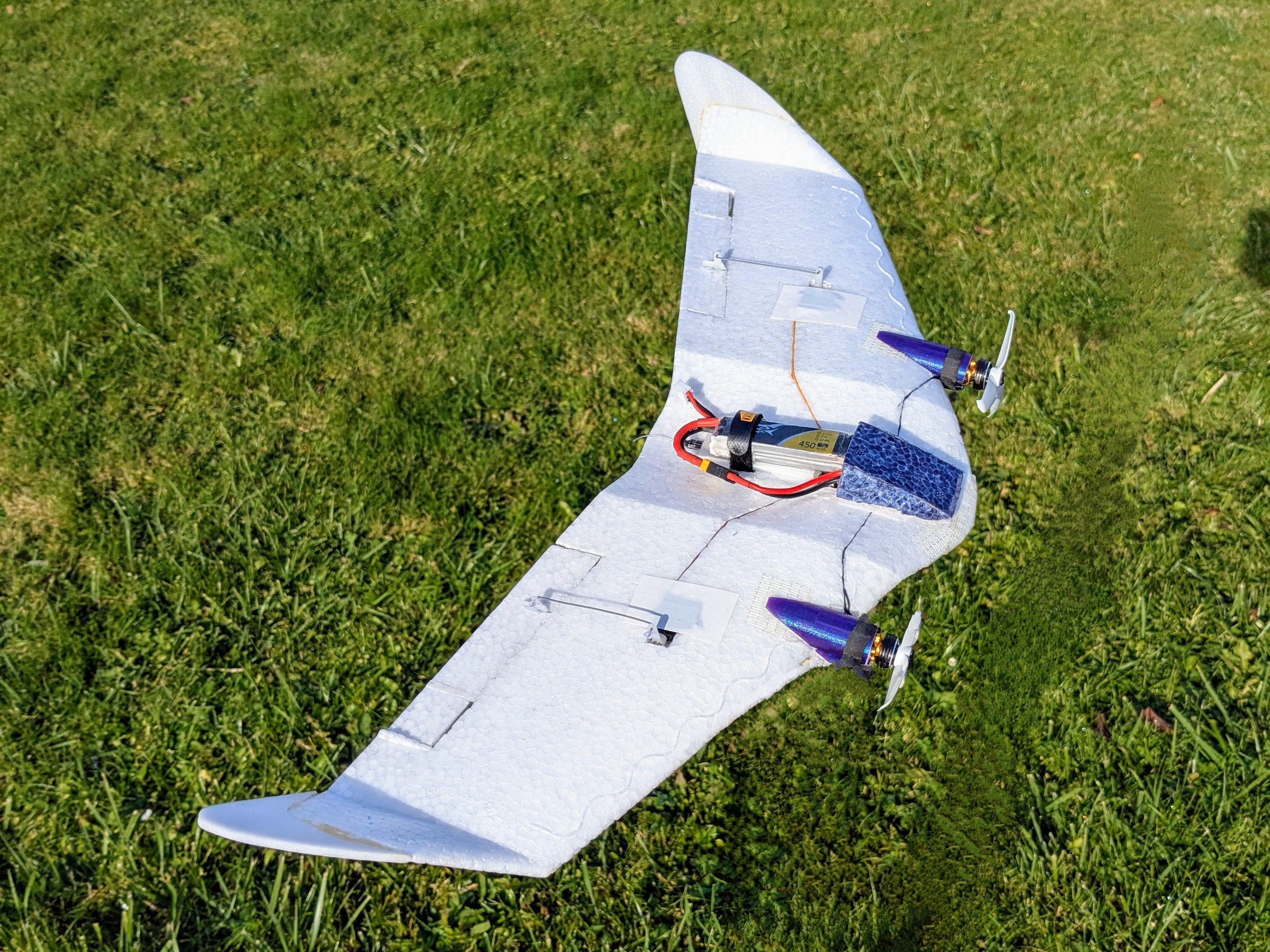

When I stumbled on a cheap all-in-one ESC-Flysky receiver, I remembered my spare Vector Wing EPP Kit. As the board provides two ESC, I decided to go for a wing with two front motors. The board supports automatic differential thrust, but this turned out to be hard to use in flight.
I put differential thrust on the rudder, but using it makes the flight unstable. it works with elevon counter steering but I see ni advantage. Will probably change the mode to have same power or play with mixing at the transmitter.
Technical specs:
Wingspan 50cm
1103 7500KV Motors
450mah 2s Lipo
Weight without/with Lipo: 65g / 93g
Next step: Adding FPV and see if it is still flyable.
Motors |
2 x Brushless Motor 1103 (4x M2 holes Ø9mm) Competition
De.amaxshop.com
|
$41.80 |
Propellers |
Gemfan 2540 2.5x4 3Loch Flash 3 Blatt Propeller Weiß 4xCW 4xCCW 2 Zoll kaufen | FPV24.com
Fpv24.com
|
See Site |
Receiver |
Multi-Protokoll-Langstreckenempfänger mit integrierten Dual 12A BLHeli Brushless ESCs mit BEC für Flysky i6 i6X Wfly Microzone
Banggood.com
|
$11.95 |
Misc Parts |
2 x BMAX 2g Micro Digital Servo zur Steuerung der Drone Gimbal
Banggood.com
|
$11.98 |
