LHI-H210 (QAV-210 clone)

By PapaQ on Jan 03, 2018

3 358 4

LHI-H210 (QAV-210 clone)

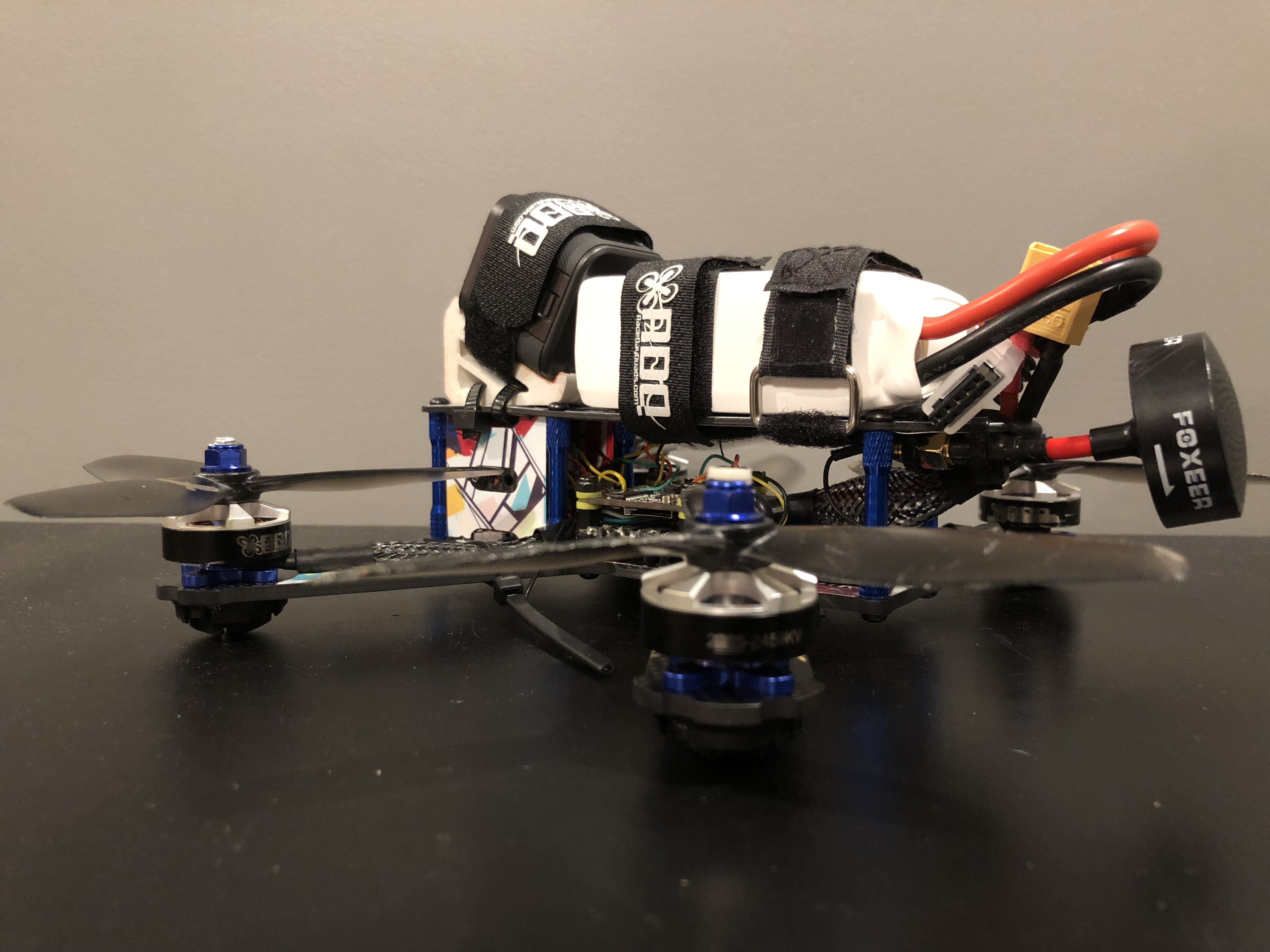

This is a LHI-H210 (QAV-210 clone). The frame was purchased from Amazon and the bulk of the parts were purchased from RaceDayQuads. I added a skin from Stikit Skins that was made for the QAV-210. This was an enjoyable build. I used the CL Racing F4S for the first time and I like it. I connected power to the CL Racing F4S and then fed power to the Spedix 4in1 30A ESC from the CLRF4S AIO FC. I used RaceDayQuads (RDQ) BadAss Naked Bottom 2205 2450KV motors along with the RDQ Mach 2 VTX and a Foxeer cloverleaf antenna. I installed an FrSky XSR-M on this and extended the antennas off the front arms using zip ties & heat shrink as I have seen other examples. I recently ordered a TPU mount for my GoPro Session but have a universal ABS mount from Thingiverse that a buddy and I printed at the local library for $1.00. I had to dremel it to get it to fit - but it is only temporary until my TPU mount arrives. I will try to post updated pics once the new mount arrives from RDQ.

Photos

Part List

Frame	LHI H210 Pure Carbon Fiber FPV Race Quadcopter Race Copter Frame (5 builds) Amazon.com	$17.99
Flight Controller	CLRacing F4S V1.6 AIO 30x30 Flight Controller (144 builds) Racedayquads.com	$74.99
ESCs	Spedix IS30 30A 2-4S 30x30 4in1 ESC w/ BEC (88 builds) Racedayquads.com	$30.99
Motors	4 x RDQ BADASS 2205 2450Kv Motor (36 builds) Racedayquads.com	$39.96
Propellers	2 x Dura Blade Alofthobbies.com	$2.00
FPV Camera	960H 1080P Full HD Micro CCD FPV Camera - $26.02 \|GearBest.com Gearbest.com	$26.02
FPV Transmitter	Drone VTX for - Drone Video Transmitters (555 builds) Racedayquads.com	$26.99
Antenna	Foxeer Antenna Stub Mini New Version LHCP and RHCP - V2 Racedayquads.com	$7.99
Receiver	XSR-M FRSKY Receiver (25 builds) Racedayquads.com	$19.49
Batteries	CNHL 14.8V 4S 1300mAh 100C G+ Plus LiPo Battery - XT60 (141 builds) Racedayquads.com	$15.49
HD Camera	GoPro Hero5 Session, 1080p (303 builds) Amazon.com	$230.41
Misc Parts	Lumenier QAV-210 Full Wrap Stikitskins.com	$14.99

Show stores (5)

Like Copy Part List Follow PapaQ

Discussion

RZFPV Jan 03, 2018

how are the rdq motors. my research implied that they were not suited well for heavy freestyle quads, so I'm going with the dys 2207s.

PapaQ Jan 04, 2018

This is my first set of RDQ motors. I opted for the naked bottoms for this build. I've got about 12 packs through the motors so far and I like them. I am just using the 2205's on this 210mm build. The RDQ 2205's are Brother Hobby Returner R2 motors branded for RDQ. Grayson Hobby also sells a similar motor in purple w/ their name on it. I am tempted to try the RDQ 2206 or 2306 2450KV motors for my next build. I'm a huge fan of RDQ after a few orders. They've been a great company to purchase from. Good pricing, same day shipping, and excellent shipping status updates unlike some other experiences.

I will say that the RDQ 2205s on my 210 haven't had any issues carrying around a large CNHL 100C battery pack along with a GoPro Hero 5 Session.

I've heard good things about the DYS 2207s and that they are tough. I would like to try them one day too. What are you putting the DYS 2207s on?

RZFPV Jan 04, 2018

You can look at my budget martian build, and also hows the mach2 is the almost $30 price tag really worth it.

PapaQ Jan 04, 2018

Looks like you've got the price down low on your build but with good gear. Good luck with the 2207's. As for the Mach 2's $29 price, I guess I thought it was worth it to have the support from RDQ in the event of issues with smart audio when Betaflight updates in the future to 3.3. I could have purchased a clone made by AKK and sold on Amazon and saved $7.00 to $8.00. I read somewhere that AKK makes the Mach 2 VTX for RDQ but also sells a clone / copy. As for performance / features, it is very nice. I do not regret purchasing the Mach 2 but the AKK should be the same thing.

Reference on AKK / RDQ Mach 2 Smart Audio issue w/ BF3.3
http://intofpv.com/t-mach2-and-akk-vtx-might-not-work-with-betaflight-3-3
