I wanted to make 10 minutes+ long range slow flyer. I'm going to get 2s3p 18650 packs for it.
381g w/o battery. Looks 281mm frame could take 7 inch props and not hit the base.
Edit: I've got mentioned custom battery and it flies beautefully with 2:1 weight ratio, 6535 props. 15minutes of actual flying. I crashed (light, nothing happened) and I think it was low voltage ~7V (3,5 per cell) and, so either FC doesn't supply power to 5v of RX or one of the ESCs shut down. Looks like I'll try connect 2 such batteries in one 4s3p. Blackbox was full...
Photos
Part List
Show stores (11)
Very nice. How's it fly?
Bad weather, my first build process and debugging stopped me to try the range, real flight time and characteristics. I did a few LOS flights, blackbox shows me very clean build. Surprised how much power it has on 3s as I only flown toys 2s till now. IDK really, need more experience and FPV flight to tell. It flies :)
Guides & Reviews
FPV has had quite a journey. Just a few years ago we started racing drones around a track and doing flips over trees, but professional cinematic FPV is a more recent development. DJI has always owned the drone photography market, but smaller acrobatic drones are starting to enter the market. They have the advantage of close proximity flight indoors and around people. There's more artistic freedom and..
Read more
For the longest time we've been limited to 3 to 4 minutes of flight and lots and lots of batteries. With more efficient motors and frame designs it's now possible to push the envelope much further. This guide will walk you through the process of building a micro long range quad capable of flying 8-30 minutes and more than 4km. The build is moderately difficult, but with the right tools and steady hands..
Read more
I haven't seen anyone try this on a multirotor. I have seen it on single prop decent/high effeciency rc planes. Typically the accepted wisdom is tat the amp draw on a multirotor is too high for lythium ion, but I would love to see what you get out of it. I would imagine a lower kv motor would serve you much better in this endavor, but I still hope it works for you. Please post a vid when you can, I have toyed with the idea of doing this but got discouraged after researching, i'm glad you're doing it!!
"ecalc" calculations says 2s3p pack (5c per battery) should do
15km flight distance (best case scenario)
min. Flight Time: 10.8 min
Mixed Flight Time: 29.0 min
Hover Flight Time: 43.6 min
with 2,5 T/W ratio
I'll give it a try :)
DiodeGoneWild did a test recently on an 18650 that did almost 30A but only at about 2V for one second or so. With 3P it might be possible if you are real easy on the throttle.

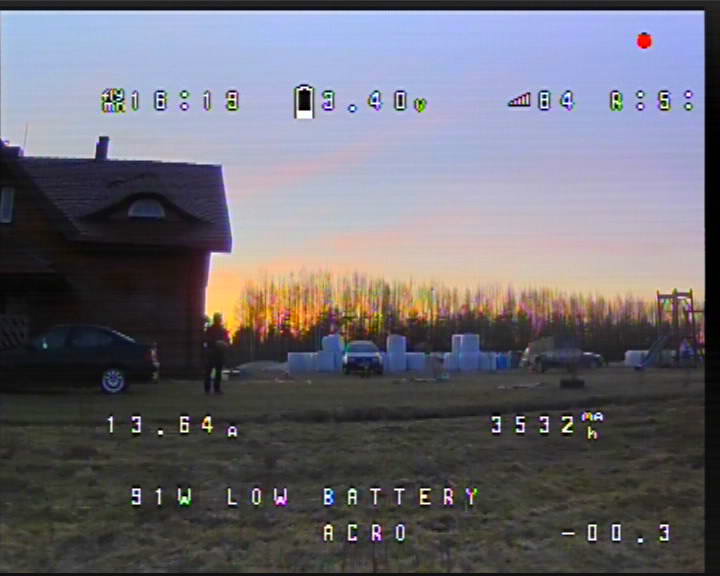

Li-Ion 2s3p (300g) over 16mins armed/flight time:
Still running those 6" CF 2 blade props?
T-motor 6535 props, sometimes KingKong 6040. At the moment I fly 6inch front and 6.5inch back to have equal thrust on fron and rear - experimenting - looks like less vibration.
