Inspired from the ghost by mode2 and the hyperlite floss, i decided to draw and mill my own light 5" frame.

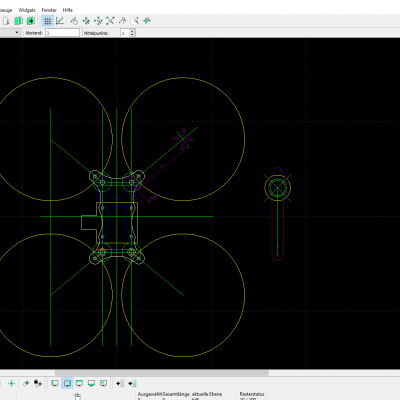

First i draw the parts in librecad, a free cad programm.

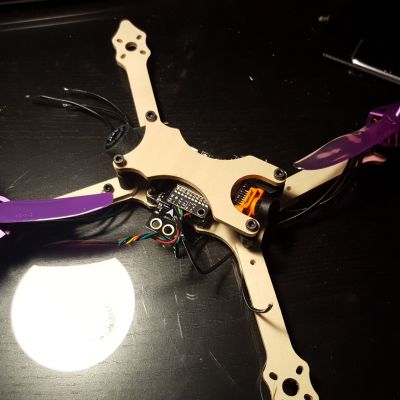

The prototype is from plywood, so can i check if everything fits.

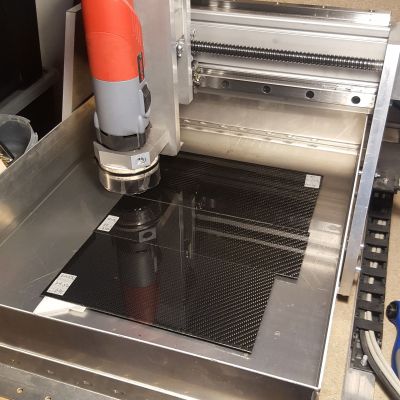

To bind the toxic carbon dust i mill the parts underwater.
Cfk milling is a dirty job :)

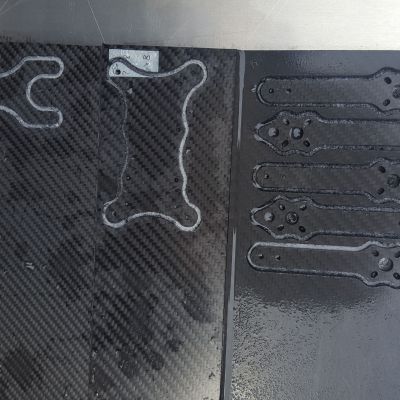

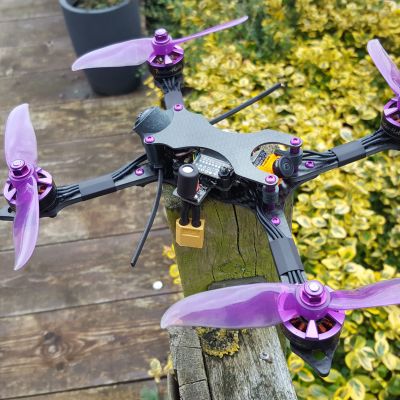

The result:

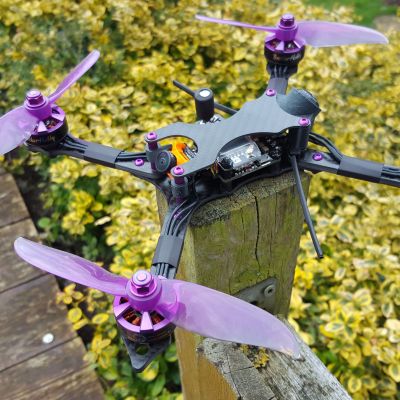

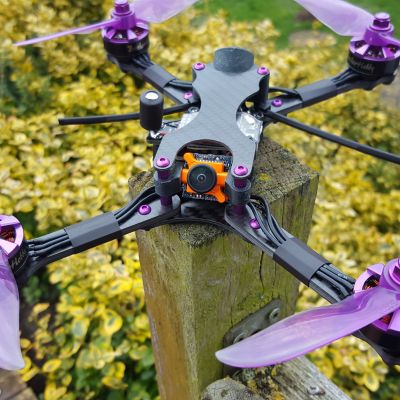

Weight of the frame ~50g
Quad without battery ~240g

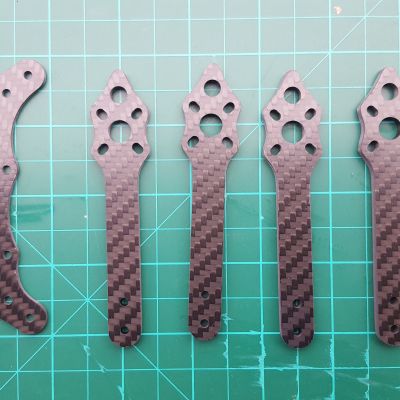

Arms 4mm Cfk

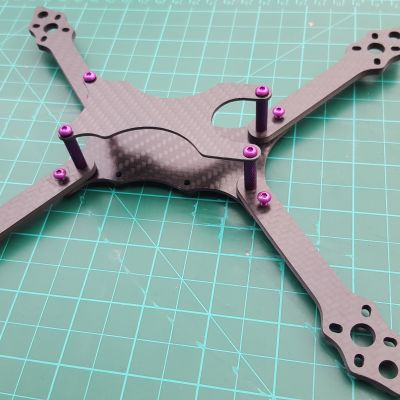

Bottom 2mm Cfk
Top 1,5mm Cfk
I think the next version will have 3mm bottom and top plate.
My CNC Mill: http://www.alufraese.de/
Software: http://librecad.org/cms/home.html
CNC Software :http://estlcam.de/
The 3D printed parts are for the floss 2 frame i found at thingiverse.
At last, sorry for my english, i have tryed my best :)
